Description
| Engine | 650cc, 196MU, YinXiang |
| Transmission | Automatic forward neutral reverse with high and low range and 4×4 |
| Drive type | Shaft |
| Belt and or chain size | Belt: 908*352 |
| Starter System | Electric |
| Fuel system | Gasoline,7.9 gal,fuel injected |
| Brake (Front/Rear) | DISC/DISC |
| Tire size(Front/Rear) | 25X8-12 / 25×10-12 |
| Wheel size and type(Front/Rear) | 12, Aluminum |
| Oil capacity and type (in liters) | N/A |
| Gear oil type and capacity( in liters) | N/A |
| Battery | 12V/30Ah |
| Light | Headlight is standard, turn lights and tail light are Led |
| Suspension(Front/Rear) | Independent Double Arm front and rear,Ajustable preload shocks front and rear |
| Dimensions(in inch) | Assembled(LxWxH): 115.35×55.12×72.05, Crated(LxWxH): 90.55×56.69×49.21, Seat height: 17.32, Wheelbase: 72.4 |
| Weight(net/gross/capacity) | 1146/1420 lbs |
| weight capacity | 220 lbs |
| Ground Clearance (in inch) | 11.81 |
| Assembly Require | Front and rear wheels, front and rear shocks, roll cage, roof, windshield, steering wheel, dump bed, hood, front bumper/winch, tow hitch,seats, skid plates, battery |

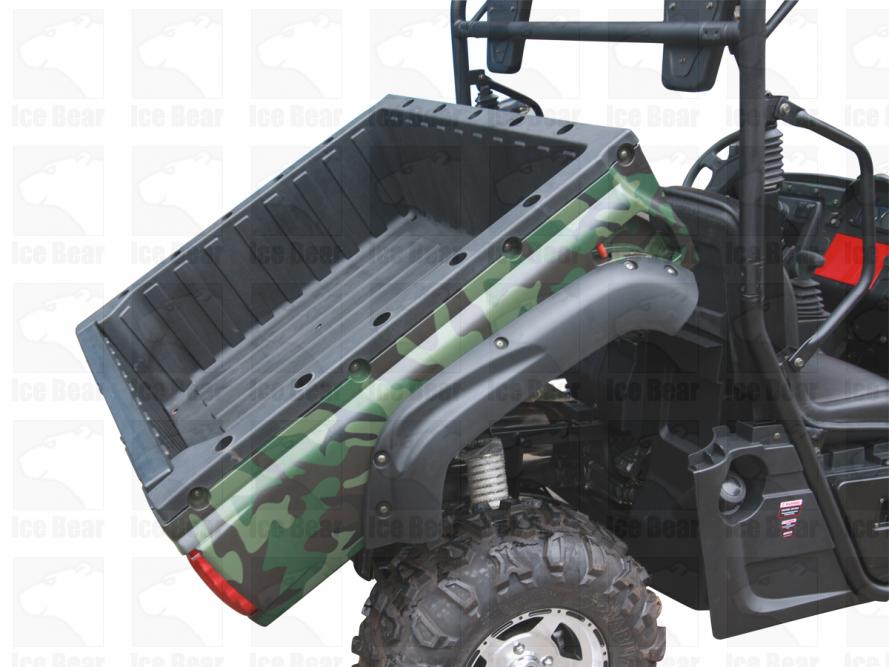

| Any special features | Locking differential, electronic assisted power steering, dump bed,and 3000lb winch, windshield, tow hitch, half door, digital speedometer, led taillights |
| EPA/carb approved | EPA Approve |
